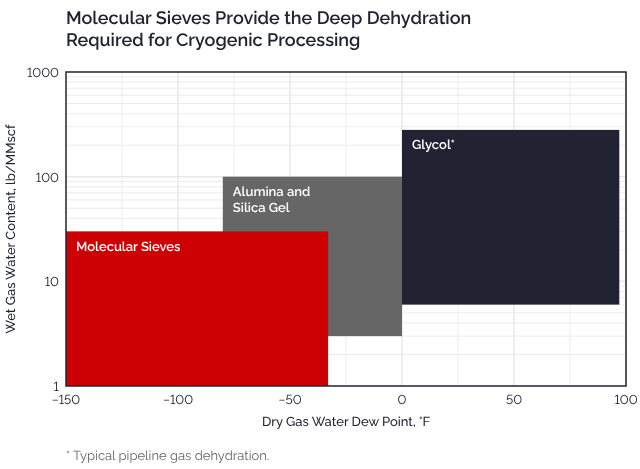

Natural gas entering NGL recovery or LNG liquefaction must be dried well beyond pipeline specification before it reaches cryogenic equipment. Molecular sieves provide the deep dehydration required to achieve these low water specifications. The choice between 4A and 3A molecular sieve depends on the application and operating conditions. 3A offers greater selectivity for water and minimizes co-adsorption of other gas components, while 4A provides higher water capacity and can offer advantages in overall operating performance. Interra Global supplies both 4A and 3A molecular sieves for gas service through the mSORB® NG series and provides technical support for adsorbent selection, system design, and dehydration performance. Why Cryogenic Processing Demands Deep Dehydration Cryogenic gas processing requires extremely low moisture levels to protect downstream equipment. In NGL recovery and LNG production, natural gas is cooled to temperatures where even trace amounts of water can form ice or hydrates, restricting flow through heat exchangers, piping, valves, and other process equipment. Inadequate dehydration can lead to reduced throughput, increased pressure drop, unplanned shutdowns, higher maintenance costs, and lost production. Molecular sieve dehydration reduces water to the very low levels required for cryogenic service. Outlet moisture specifications vary by process and operating conditions but are typically below 0.1 ppmv (approximately a −150°F water dew point), providing the dry gas needed for reliable NGL recovery and LNG liquefaction. Why Molecular Sieves Are the Standard for This Service Glycol (TEG) dehydration is an economical and widely adopted method for removing water from natural gas to meet pipeline specifications. Cryogenic NGL recovery and LNG production, however, require much lower moisture levels than conventional glycol systems typically achieve. For these applications, molecular sieve has been the industry standard since the 1960s. Molecular sieves use a uniform, crystalline pore structure to selectively adsorb water from the gas stream. Their high affinity for water enables ultra-low moisture levels, while their thermal stability allows repeated adsorption and regeneration cycles under demanding natural gas operating conditions. Choosing Between 4A and 3A in Gas Service Both 3A and 4A molecular sieves can dehydrate gas to cryogenic specification. The appropriate choice depends on feed composition, contaminant removal requirements, regeneration conditions, and overall unit design. Type 4A: Capacity and Regeneration Economics 4A molecular sieve is widely used for deep dehydration of natural gas and hydrocarbon streams. Its larger pore opening provides higher water adsorption capacity, while its crystal structure offers improved tolerance to repeated hydrothermal cycling. 4A molecular sieve is typically regenerated at higher temperatures than 3A, which can reduce regeneration gas requirements and provide greater flexibility in regeneration cycle design. Its higher water capacity can also support smaller adsorbent beds and favorable unit economics. Type 3A: Selectivity Control The smaller pore opening of 3A molecular sieve selectively adsorbs water while limiting the co-adsorption of larger molecules commonly found in natural gas streams, including CO₂, H₂S, and C2+ hydrocarbons. This selectivity can help maintain a more consistent composition in both the product and regeneration gas and reduce hydrocarbon losses associated with co-adsorption. 3A molecular sieve can be particularly advantageous when both CO₂ and H₂S are present. By limiting their co-adsorption, 3A can reduce the formation of carbonyl sulfide (COS) within the dehydration bed. It is typically regenerated at lower temperatures compared to conventional 4A molecular sieve, consequently reducing regeneration energy requirements and limiting coke formation. What Reliable Performance Depends On Selecting the right molecular sieve is only part of a successful dehydration system. Outlet performance and adsorbent life depend on multiple factors such as feed composition, contaminant loading, operating conditions, bed design, and regeneration protocol. A mismatch between the adsorbent and process conditions can lead to reduced performance, shortened change-out intervals, and higher operating costs. Matching the molecular sieve grade to the actual gas composition and operating conditions helps maintain dehydration performance, minimize pressure drop and premature aging, and extend adsorbent service life. Engineered Solutions from Interra Global Interra Global applies proven dehydration principles through engineered molecular sieve solutions tailored for natural gas service. From commissioning through the full operating life of a unit, Interra Global delivers: Reload Technical Support Interra Global personnel collaborate with plant staff to review and refine the existing changeout procedure, then develop a tailored scope of work laying out the operation step by step. Procedures draw on industry best practice and experience supporting hundreds of gas processing facilities worldwide, with safety first and cost-effective, timely execution close behind. A correct recharge is critical to successful commissioning and long-term operation, and more than 35 years of supervisory experience stand behind ours. Dehydration Unit Commissioning Where required, Interra Global provides on-site support during commissioning and start-up of the dehydration unit. We work through the critical aspects with your team ahead of time so the launch is safe and efficient. Technical support is available throughout commissioning as needed. On-Site Moisture Analysis and Performance Optimization Interra Global provides on-site technical support to evaluate dehydration unit performance, improve operating efficiency, and maximize molecular sieve service life. Working alongside plant personnel, we review operating data, regeneration performance, moisture levels, pressure drop, and other key system parameters to identify opportunities for optimization. Using Interra Global testing equipment, breakthrough tests can be done to evaluate dynamic water adsorption capacity, optimize cycle times, and estimate remaining molecular sieve service life. Findings are reviewed with plant personnel and summarized in a written report with data analysis and operational recommendations. Spent Sample Analysis and Adsorption Testing Spent material testing identifies contamination sources such as amine, heavy hydrocarbons, water, and sulfur compounds. The work typically includes ICP chemical composition analysis, adsorption property analysis, physical property analysis, and carbon deposition analysis. Together these determine the cause of degradation and support corrective actions that extend useful service life and prevent premature damage, documented in a full analysis report. On-Site Troubleshooting Services When a dehydration unit fails to meet moisture specifications or experiences a decline in performance, Interra Global's technical team provides troubleshooting support to help identify the root cause and determine corrective action. Time matters during an operational disruption, so customers have direct access to Interra Global's technical team by phone, email, or on-site support, with engineers located in Texas and Louisiana. Engineer and Operator Training Interra Global provides technical training for plant engineers and operators focused on molecular sieve dehydration fundamentals, unit operation, regeneration, troubleshooting, and adsorbent best practices. Training can be tailored to the facility and experience level of the team, combining adsorption fundamentals with practical guidance for day-to-day operation and long-term bed performance. Specialized Support for Liquid Carryover (Wetting Events) Fast response is essential when liquid carryover reaches a molecular sieve bed. Water, hydrocarbons, amine, and other liquids can reduce adsorption performance, damage the adsorbent, and contribute to fouling or coking during regeneration. Interra Global works with plant personnel to identify the type and extent of contamination and develop a recovery procedure tailored to the unit. Depending on the event, this may include a reduced or carefully managed regeneration temperature to gradually remove contaminants while minimizing further damage to the molecular sieve. We also provide training and guidance to help operations personnel recognize and respond to future carryover events. Complete Adsorbent Bed Solutions Interra Global supplies mSORB 4A-NG and mSORB 3A-NG molecular sieves for natural gas dehydration, with product selection based on feed composition, operating conditions, and unit performance requirements. A complete load is more than sieve. Ceramic ball hold-down and graded support layers sit above and below the beds, which Interra Global supplies as cSPHERE A-25, part of our inert bed support media line, so all media ships from one supplier. Frequently Asked Questions What water dew point can molecular sieves reach in natural gas? Dew point is the temperature at which water begins to condense out of the gas; the lower the dew point, the drier the gas. Properly operated molecular sieve units typically dry natural gas below 0.1 ppmv water, corresponding to very low water dew points often approaching −150°F (−100°C), low enough for cryogenic processing. Achievable outlet moisture depends on bed design, regeneration quality, and feed conditions. What temperature does regeneration run at in gas service? The appropriate regeneration temperature depends on several factors, including feed composition, contaminants, adsorbent type, regeneration gas availability, and overall unit design. A technical evaluation of the process and operating conditions is recommended to establish the appropriate regeneration protocol for each unit. What are hydrates, and why does dehydration prevent them? Natural gas hydrates are ice-like crystalline solids that form when water and light hydrocarbons combine under pressure, at temperatures well above the normal freezing point of water. They plug valves, exchangers, and instrument lines. Removing water from the natural gas prevents hydrate formation, which is why deep dehydration is located upstream of cryogenic and high-pressure equipment. Do molecular sieves also remove CO₂ or H₂S? Some molecular sieves can adsorb CO₂ and H₂S, but in natural gas dehydration the primary objective is water removal. 3A molecular sieve selectively adsorbs water while largely excluding CO₂ and H₂S, while the larger pore structure of 4A allows some co-adsorption of these components. When sulfur removal is the objective, that is a separate treating step; see hydrogen sulfide removal. How do I choose between 4A-NG and 3A-NG? As a working rule, 4A-NG is chosen when the gas stream is relatively straightforward and maximum water-loading capacity drives operating economics. 3A-NG is chosen when CO₂, H₂S, or heavier hydrocarbons are present and adsorption selectivity becomes more important, or when regeneration heater limitations make lower-temperature regeneration desirable. Typical product properties are provided on the individual product pages, and Interra Global's technical team can help determine the best fit for your specific application. |
